Hot Rods Bottom End Rebuild Kit for 2002-18 Yamaha YZ85 - CBK0076
-
Hot Rods Bottom End Rebuild Kit
Part Number: CBK0076
- Complete Bottom End Rebuild Kit to get you running again fast
- One economic package saves you over 10% versus buying individual components

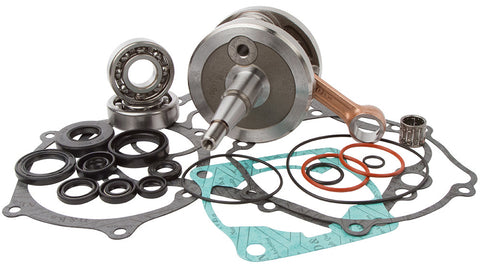

- Kit contains crankshaft, main bearing/seals and complete gasket set to complete installation.
Building on the success of high-quality, OEM replacement rods, Hot Rods introduced the perfect place to showcase them in a complete heavy duty Hot Rods OEM replacement crankshaft. Having been regarded as the premier alternative to costly OE manufactured cranks, they set out to create a complete bottom end rebuild kit that includes the crank and everything you need to rebuild your complete bottom end. Along with the well known high quality Crankshaft, you also get a Vertex Complete gasket set that includes all of the gaskets, o-rings, and valves seals necessary to rebuild the entire engine and transmission and the Hot Rods complete main bearing and seal kits built to the highest quality standards that meet or exceed those of OEM.
Tire Diameter Speed Rating Load Rating Wall Construction Tire Tube Type Rim Size Product Line Hot Rods Bottom End Rebuild Kit Part Number CBK0076 Fitment Type Unit Sale Qty Kit Style Material Color Size Finish Position Functional Length Cable Sleeve Length Cable Sleeve Travel Driver Seat Length Passenger Seat Length Driver Seat Width Passenger Seat Width Piston/Cylinder Size Piston Size Added Cylinder Stroke Volume Final Engine Displacement Exhaust Configuration Muffler Size Muffler End/Tip Style Windshield Height Windshield Width Handlebar Diameter California Air Resource Board Compliance CARB Compliant Product Disclaimer (1) Crankshaft with connecting rod installed
(1) Wrist pin bearing
(1) Top end gasket set
(1) 20x5x15 bearing
(1) 20x47x14 bearing
(1) 28x40x3 seal
(1) 20x40x8 seal
(1) 12x25x7 seal
(1) 17x25x4 seal
(1) 13x22x5 seal
(1) 12x21x4 seal
(1) 12x18x5 seal
(1) 26x38x5 seal2018 Yamaha YZ85
2017 Yamaha YZ85
2016 Yamaha YZ85
2015 Yamaha YZ85
2014 Yamaha YZ85
2013 Yamaha YZ85
2012 Yamaha YZ85
2011 Yamaha YZ85
2010 Yamaha YZ85
2009 Yamaha YZ85
2008 Yamaha YZ85
2007 Yamaha YZ85
2006 Yamaha YZ85
2005 Yamaha YZ85
2004 Yamaha YZ85
2003 Yamaha YZ85
2002 Yamaha YZ85
